Description

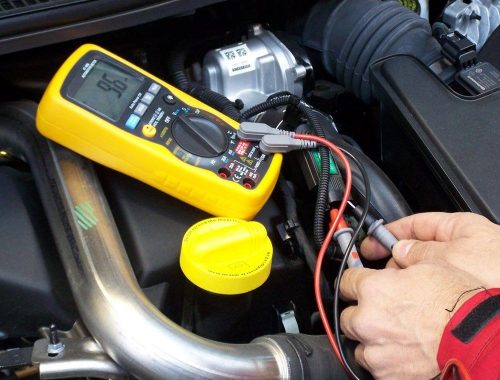

Specially designed for hybrid cars, as well as all other automotive applications.

• CAT III (1000v) safety rating for hybrid vehicle circuits and all other automotive applications
• Higher amperage test ranges, up to 20 Amps
• RPM measurement for automotive engines with 2 to 10 cylinders using the inductive Pick-up
• Oversized high contrast LCD display with backlight
• 14 Functions including DCV, ACV, DCA, ACA, Resistance, RPM (Tach), Frequency, Dwell angle, Duty cycle, Temperature (IR Temperature) (ºC / ºF), Capacitance, Continuity and Diode Check
• Data Hold, auto Power Off, over-range indication
• Fused current inputs / overload protection on ranges
• Measures milliseconds pulse width to test on-time fuel injectors, idle air control motors and electronic transmission controls

Functions:

• Volts AC/DC
• Current AC/DC
• Resistance RPM
• Frequency
• Dwell angle
• Duty cycle
• Diode check
• Temperature ºC/ºF
• Capacitance
• Continuity
